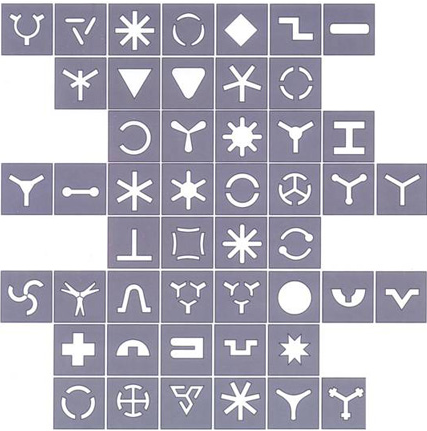

Polyester, Polyamide and polypropylene fibers and filaments are all made with SPINNERETS of high alloy and stainless steel. The material to be selected depends on the spinning process and the cleaning method to be used. One selection criterion is the spinning pressure, which determines the type and treatment of the material. Modern CNC Technology in production and sincere laboratories procedures assures the high precision of spinnerets. The use of modern specially developed machineries for use in the micro field, guaranties profiles in all possible dimensions all of the highest Quality.





AISI 304 304 316 Ti 329 430 431
DIN 1,4301 1,4401 1,4571 - 1.4016 1,4057
ANALYSIS
C 0.08max 0.08max 0.08max 0.06max 0.12max 0.20max
Cr 18 - 20 16 - 18 16-18 25 16 - 18 15-17
Ni 8 - 10.5 10-14 10-14 5 - 1.25 - 2.50
Mo - 2-3 2-3 1.5 - -
Cu - - - - - -
Ti - - 5XCmin - - -
Cb/Ta - - - - - -
MECHANICAL PROPERTIES
Density Yield 7.9 7.95 7.95 7.8 7.7 7.7
Strength Kg/mm2 20 21 23 50 27.5 60
Tensile Strength Kg/mm2 50-60 50-60 50-65 70 50-65 80-140
Elongation(min)% 50 45 40 30 20 14
Reduction(min)% 60 60 50 55 60 45
Impact(min.)Kgm 8.60 8.60 8.60 8 - 3.0
Hardness HB Solution annealed 130 - 180 130 - 180 130 - 180 200 - 220 (26-28RC) 250 - 275* (26-28RC) 270 - 290* (28-30RC)
Hardness (max) HB 130 - 180 130 - 180 130 - 180 - 130 - 170 450
Magnetizable - - - Yes Yes Yes
